End Stop/Capping Sensor
End Stop/Capping Sensor
Couldn't load pickup availability
Say hello to the dream team of DTF printer maintenance—Origin, Wiper, Capping, and Up & Down Sensors! These little powerhouses work together to keep your printer in tip-top shape, so you can focus on creating epic designs. Here’s how they roll:
- Origin Sensor: Your printer’s GPS—always knows where it’s starting, ensuring smooth movements and flawless alignment.
- Wiper Sensor: The clean-up crew—keeps your printhead spotless, making sure every print is crisp and sharp.
- Capping Sensor: The protector—closes up when the printhead’s not in use, preventing any damage and keeping things neat.
- Up & Down Sensor: The lifter—ensures smooth transitions up and down, letting your printer adjust with precision.
Together, these sensors make sure your DTF printer runs like a well-oiled machine. Smooth, smart, and totally in control, they help you print with confidence and keep everything running perfectly—one sensor at a time! 🛠️🚀
DTF Parts Store • Repair supportInstallation & troubleshooting
View safety steps and replacement checks
Know what to check, how to prepare safely, and what your technician should verify for this sensor. Machine layouts and wiring vary by model.

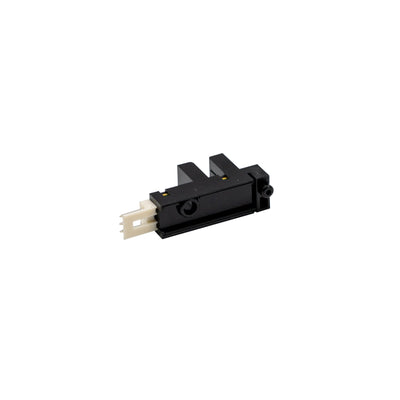

End Stop/Capping Sensor
Match before replacing:
Exact model • voltage • output type • connector
Film or powder is not detected reliably. Dust, alignment, settings and cable faults can produce the same symptom as a failed sensor.
Safety first — before access or repair
Follow the machine’s shutdown procedure. Isolate all power sources and prevent restart using the approved lockout procedure. Control stored energy and let heaters cool fully. An authorized person must verify isolation before work starts. The power button or emergency stop alone does not isolate electrical energy.
Electrical work, heaters and safety controls require a qualified technician. Never work inside a live cabinet, bypass guards or safety devices, or reach into moving rollers or fans. Follow the machine manual and powder/ink safety data sheet for required protective equipment.
Stop & isolate
Shut down, isolate supplies, prevent restart, control stored energy and verify the machine is safe to access.
Inspect & match
With power isolated, check for powder on the sensing face and loose mounting. Gently clean a photoelectric lens with a dry soft cloth. Do not open the sensor.
Replace correctly
A technician must match voltage, output type and pinout to the original sensor and wiring diagram. Retain the sensing position; adjust alignment using the exact sensor instructions. Never use a process sensor as a personnel safety device.
Verify operation
After guards are restored, verify detection with the actual film or powder target using the machine’s normal test procedure. Keep hands outside the moving film path.
Stop and get help if…
You find burned wiring, repeated breaker trips, damaged safety controls, uncontrolled heating, ink on electronics, a mismatch in ratings, or a diagram that does not match the machine. Keep the machine out of service until a qualified technician resolves the fault.
What to send for model-specific help
Send the machine model and serial label, a clear photo of the original component and its markings, your symptom, and the relevant service-manual page. Take internal photos only after safe isolation by an authorized person. Do not unplug or move wires just to photograph them.
Need the procedure for your machine?
Send your model and original part photos so we can help confirm compatibility and the correct service reference.
Get part-specific help →This is a service planning overview. Use the exact machine and component manuals for removal, wiring, torque settings, calibration and commissioning. It is not a model-specific wiring diagram.
Energy isolation reference · Photoelectric sensor precautions
