Bring your transfer production in-house. Put SplatForge at the center of your shop and build a printer-to-press workflow around your business, your space and your ambitions.
Built to order. Built for you. Factory tested. Factory direct. Estimated delivery: 30–45 days. Prepare your space, power, ventilation and supplies before arrival.
The SplatForge lineup
Find the machine behind your next big idea.
Explore each system. See the capacity. Picture it in your shop.
NEW / SPLATFORGE MINI
Small format. Big first move.
A great first DTF printer for beginners, small jobs and growing businesses. Start with a compact 300 mm printer and matched powder shaker at $14,999.
2 × Epson I3200-A1 printheads
300 mm printing width · CMYK + White
7 m²/hr catalog output at 4-pass
Printer & DF-300S shaker; software confirmed with order
Plan DTF transfers for your apparel projects, from individual designs to larger print layouts.
Prepare your transfers
Pair the printer with the included powder shaker, then plan your curing and heat-press workflow.
Choose your capacity
Compare print modes, head count and your finishing workflow to find a system that fits your orders.

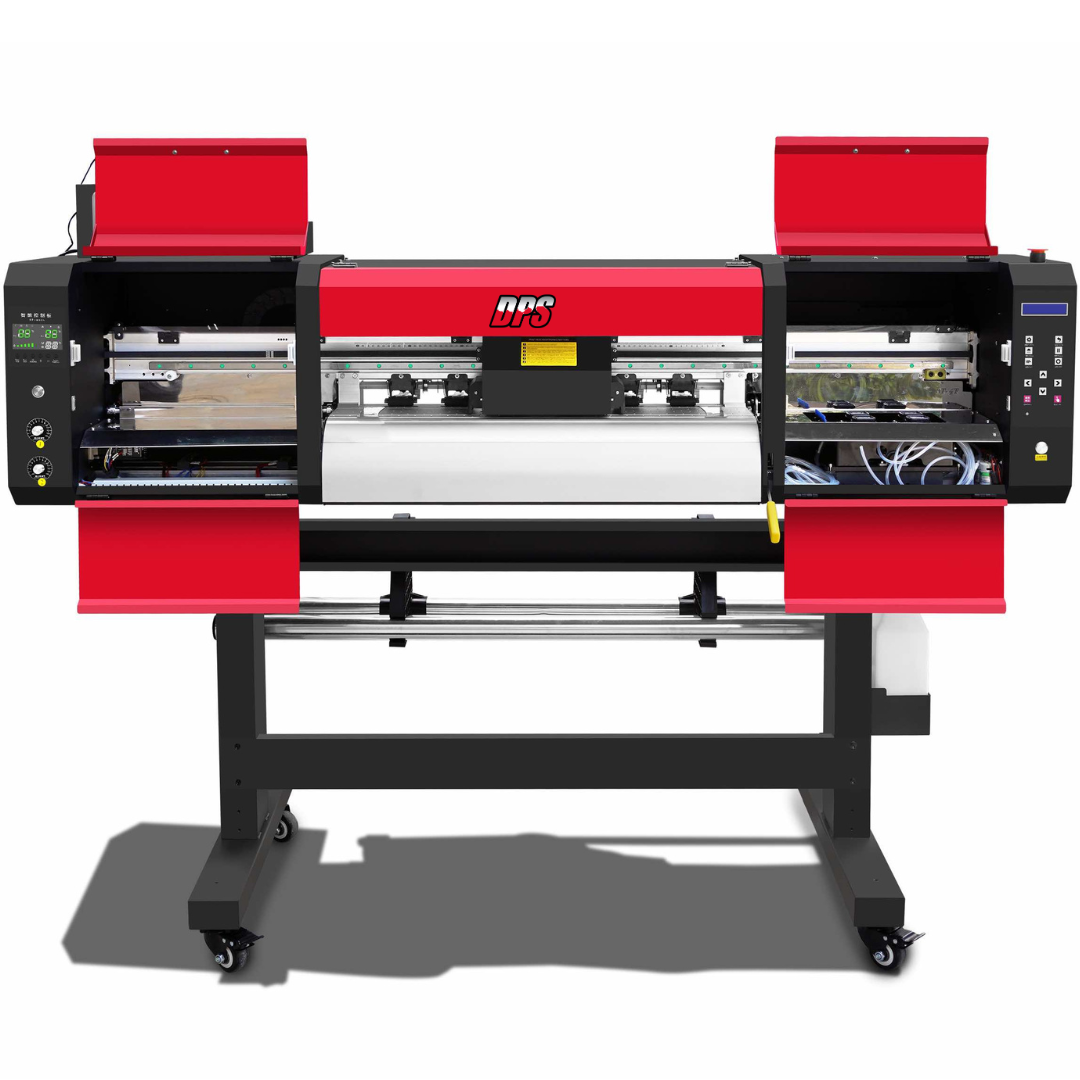

Printer imagery is illustrative. Catalog speeds depend on print settings and operating conditions. Printers ship by factory-direct freight. Estimated delivery is 30–45 days. Final configuration and delivery arrangements are confirmed in your quote.
Three systems. Find your fit.
Mini, 2H or Pro 4H?
Start with the 300 mm Mini for beginners and small jobs. Choose the 600 mm 2H for wider layouts, or the Pro 4H for more printing capacity.
2-head printer & shaker bundle
SplatForge 2H
Includes printer, powder shaker and Flexi RIP software.
Special order · Factory-direct freight · Estimated delivery 30–45 days
A practical starting point when its production speed meets your order volume. Keep your initial equipment investment lower while building your DTF workflow.
Financing through Crest Capital. Subject to credit approval.
Know exactly what you’re comparing.
Specification
SplatForge Mini
SplatForge 2H
SplatForge Pro 4H
Printheads
2 × Epson I3200-A1
2 × Epson I3200-A1
4 × Epson I3200-A1
Printing width
300 mm / 11.8 in
600 mm / 23.6 in
600 mm / 23.6 in
Ink configuration
CMYK + White · Pigment
CMYK + White · Pigment
CMYK + White · Pigment
4-pass catalog speed
7 m²/hr · approx. 75 sq. ft./hr
14 m²/hr · approx. 151 sq. ft./hr
28 m²/hr · approx. 301 sq. ft./hr
6-pass catalog speed
4.7 m²/hr · approx. 51 sq. ft./hr
8 m²/hr · approx. 86 sq. ft./hr
15 m²/hr · approx. 161 sq. ft./hr
8-pass catalog speed
3.6 m²/hr · approx. 39 sq. ft./hr
6 m²/hr · approx. 65 sq. ft./hr
12 m²/hr · approx. 129 sq. ft./hr
Included software
Confirmed with final order
Flexi RIP
Flexi RIP
Included shaker
DF-300S
HD-700N(A)
HD-700W(A)
Electrical supply
AC 220 V · 50/60 Hz
AC 220 V
AC 220 V · 50/60 Hz
Listed printer power
Confirm with quote
1,400 W
1,500 W
Listed shaker power
Heaters: 3 × 400 W
5,800 W
4,000 W
Printer dimensions (mm)
Confirm operating dimensions¹
1748 × 729 × 1631
1929 × 751 × 1688
Shaker dimensions (mm)
Confirm operating dimensions¹
2522 × 1130 × 1105
2226 × 940 × 945
Listed printer weight
117 kg (catalog)
211 kg / approx. 465 lb
250 kg / approx. 551 lb
Listed shaker weight
51 kg (catalog)
352 kg / approx. 776 lb
375 kg / approx. 827 lb
¹ Mini catalog packing dimensions: printer 1460 × 650 × 620 mm; shaker 810 × 640 × 794 mm. Packing dimensions are not operating dimensions. Technical figures are from the manufacturer’s H3030-3S, 2026 H3070-2 and H3070-4 catalog configurations, confirmed for our bundles. Speeds are printing-area figures at the stated pass settings, not finished garments per hour. Actual output varies with artwork, profiles, media, maintenance and operating conditions. Confirm the final equipment configuration, electrical installation, freight, taxes and included services in your written quote.
More heads = more capacity
The Pro lists 2× output at 4-pass and 8-pass, and 87.5% more at 6-pass. The four-head configuration adds production capacity without increasing print width.
Compare the same print mode
Pass count is part of the speed-versus-quality tradeoff. Four heads do not automatically mean better quality; ink, film, profiles and print settings matter too.
Plan the whole workflow
Choose capacity you can sell and finish. Your curing workflow, heat press and staffing need to keep pace with your printing output.
Equipment financing
Your next machine. Monthly payment options.
Explore financing through Crest Capital. Request your equipment quote, then review financing options with the lender. Subject to credit approval and lender terms.
Three practical steps to planning your SplatForge printer installation.
Define your production
Tell us your typical design sizes, garments and daily production goals so we can discuss an appropriate setup.
Prepare your space
Confirm machine dimensions, clearance, electrical requirements and ventilation before planning installation.
Complete the workflow
Check software compatibility, ink and film requirements, heat press size and the supplies you will need to begin.
SplatForge printer questions
Know your setup.
Can I finance my equipment?
Request an itemized equipment quote from our team, then use the Crest Capital tool above to receive payment options by email. Crest Capital determines eligibility and terms; financing is subject to credit approval.
What comes with SplatForge Pro?
Both bundles are available by special order and include a DTF printer, powder shaker and Flexi RIP software. SplatForge 2H has two Epson I3200-A1 heads; SplatForge Pro 4H has four. Confirm software licensing details, any additional accessories and services in your written quote.
How do I check pricing and availability?
Equipment is supplied by special order, with freight quoted separately. Open your printer’s showcase and select See price & financing. Checkout collects the bundle price; additional freight is quoted and billed separately, with delivery timing confirmed before shipping.
Which software and supplies should I use?
Compatibility depends on the machine configuration. Confirm supported RIP software, ink, film and powder with our team before purchasing.
How does a special order work?
Choose your SplatForge bundle, review the price and payment options, then check out or apply for financing. Checkout charges the bundle price. Freight is additional and quoted separately; freight cost and delivery timing are confirmed before shipping.
What should I confirm before ordering?
Review power and ventilation requirements, freight and delivery arrangements, setup support and written warranty terms with your equipment quote.
Ready to make your next move?
Tell us where you want to take your business. Request an SplatForge Pro equipment quote and ask about payment options for your next setup.
